Flat-Sheet Membranes

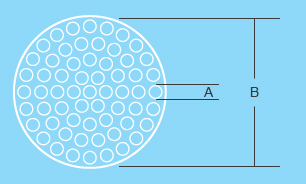

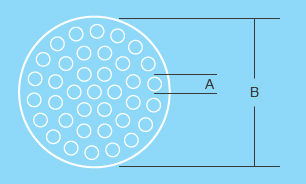

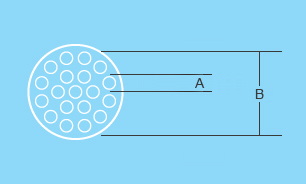

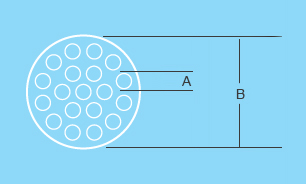

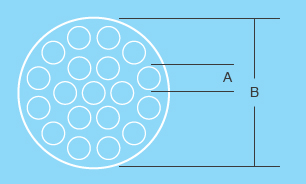

Pictures	Size	Pore size
	A: 3.3mm	50nm
	B: 25mm
	A: 4.0mm	50nm
	B: 30mm	20nm
	A: 6.0mm	50nm
	B: 40mm
	A: 3.6mm	50nm
	B: 40mm
	A: 2.5mm	50nm
	B: 40mm

Ultrafiltration ceramic membrane/ceramic filter is a variety of membrane filtration in which forces, such as pressure or concentration gradients, cause separation through the semi-permeable membrane. High molecular weight suspended solids and solutes remain in the so-called retentate while water and low molecular weight solutes pass through the membrane in the permeate (filtrate). The pore size of the ultrafiltration ceramic membrane is in the range of 0.01μm ~ 0.05μm, suitable for the separation, concentration, and purification of macromolecules and small molecules.

A versatile and economical solution for clarification, concentration, and purification of liquids, ultrafiltration membrane filter could remove emulsified oils, metal hydroxides, colloids, bacteria and viruses, emulsions, dispersed material, suspended solids, and other large molecular weight materials from water and other solutions. Ultrafiltration ceramic membrane also serves in critical parts of the production processes of fruit juice, milk and whey, electrocoat paints, pharmaceuticals, poly-vinyl alcohol, and indigo dye. It is key to surface water treatment for potable uses and wastewater treatment for reuse, such as palm oil wastewater and paper mill wastewater treatment. Ultrafiltration ceramic membrane is used to recycle flow or add value to later products and more. In many cases, ultrafiltration ceramic membrane is used for prefiltration in reverse-osmosis plants to protect the reverse-osmosis process. Ultrafiltration ceramic membrane is an effective means of reducing the silt density index of water and removing particulates that can foul reverse osmosis membranes.
Enable GingerCannot connect to Ginger Check your internet connection
or reload the browserDisable in this text fieldRephraseRephrase current sentenceEdit in Ginger×

• Food & beverage
• Bio-pharm
• Chemical and petro-chemical
• Water & wastewater treatment

• High flux
• Reliability
• Well-proven long operating life
• Ease of use, clean, regenerate
• Stable over a wide pH (0-14) range and chemical compatibility
• Sterilization by steam and oxidizing agents
• Wear ability and excellent strength
• Narrow pore size distribution
• Stringent quality control process and procedures with full trace ability
• Excellent performance in MF/UF & thermal stability

Ultrafiltration is a separation process that uses a membrane to filter out impurities from a liquid. The ultrafiltration membrane is a type of semipermeable membrane that allows some molecules and ions to pass through while blocking others based on their size and charge.

The ultrafiltration membrane works by using a pressure gradient to force the liquid to flow through the membrane. The membrane has tiny pores that are small enough to block particles and molecules above a certain size, while allowing smaller molecules and ions to pass through.

As the liquid passes through the ultrafiltration membrane, the impurities are filtered out and retained on the feed side of the membrane, while the purified liquid passes through the other side of the membrane. The degree of purification depends on the size and charge of the molecules and ions being filtered, as well as the pore size and surface chemistry of the membrane.

Ultrafiltration membranes are commonly used in water treatment, food and beverage processing, pharmaceutical manufacturing, and other industries where the removal of impurities is critical.
